Highly efficient high power short pulse lasers at the wavelength range of 2 µm based on Tm3+ doped materials have a variety of applications such as material processing, LiDAR, mid-infrared OPOs for wavelengths up to 12 μm, or mid-infrared supercontinuum generation. They also would enable direct coherent soft X-ray generation by high order harmonics generation.

For these applications, a light source with much higher conversion efficiency, average power, pulse energy, and shorter pulse duration is desirable.

Now, Masaki Tokurakawa and colleagues at Institute for Laser Science, University of Electro-communications, Tokyo, have developed novel 2 µm high power short pulse lasers based on new technique of fiber laser in-band pumping and Kerr-lens mode locking with a new Tm doped gain medium provided from University of Hamburg, Dr. Christian Kränkel.

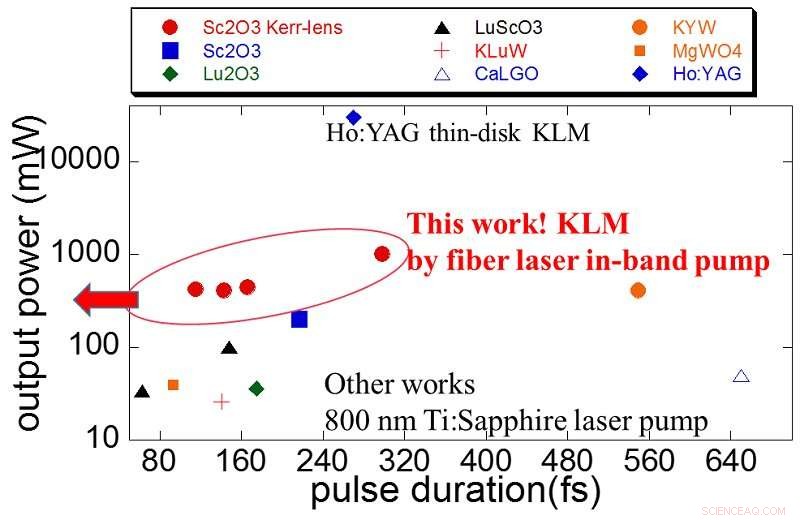

Pulses as short as 115 fs and output power of 420 mW with conversion efficiency of ~20% were obtained. Compared with prior SESAM mode-locked Tm doped lasers pumped by Ti:Al2O3 lasers, this new method enabled generation of much higher output power and shorter pulse duration with higher conversion efficiency (Fig.1).

This is the first Kerr-lens mode-locking at a wavelength of 2 μm and it opens up possibilities for new highly efficient high power short pulse lasers at 2 μm. In the future, sub 50 fs pulse generation at this wavelength range would be possible.
